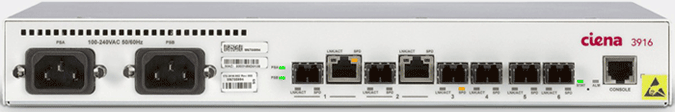

Ciena 3916
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STAT | Solid Green | System is operating normally and is ready. |
Flashing Green | System is currently booting up, initializing, or performing self-tests. | Solid Red | Power-on self-test (POST) failed; there is a critical hardware or software error. | Unlit | The system is not receiving power or is not operational. | | ALRM | Solid Amber/Yellow | Indicates an active alarm. This often happens if a fiber connection is lost or a port is down. |
Unlit | Normal operation; no active alarms | | POWER (PSA/PSB) | Solid Green | Power supply is functioning normally |
Unlit | The specific power supply is not receiving power or has failed | | LNK/ACT (LEFT) | Solid Green | A valid network link is established |
Flashing Green | Data is actively being transmitted or received through the port | Unlit | No link is detected (the port is inactive or disconnected) | | SPD (RIGHT) | Solid Amber | Port is connected at 1000 Mbps (1 Gbps) |
Unlit | Port is connected at 10/100 Mbps |
