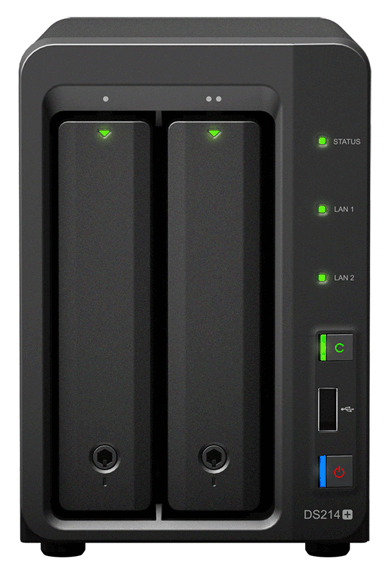

Synology DiskStation DS214+
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| DISK 1-2 | GREEN SOLID | Drive ready and idle |
| GREEN FLASHING | Accessing drive |
| AMBER SOLID | Drive error |
| UNLIT | HDD hibernation, or no internal drive |
| STATUS | GREEN SOLID | Volume normal |
| AMBER SOLID | Available volume space < 1GB or < 1 % |
| AMBER FLASHING | Dish crashed / Volume degraded or crashed |
| AMBER FLASHING | No internal drive |
| UNLIT | HDD hibernation |
| FRONT LAN 1-2 | GREEN SOLID | Network connected |
| GREEN FLASHING | Network active |
| UNLIT | No Network |
| COPY BUTTON | GREEN SOLID | Device detected |
| GREEN FLASHING | Copying data |
| UNLIT | No device connected |
| POWER | BLUE SOLID | Powered on |
| BLUE FLASHING | Booting up or shutting down |
| UNLIT | Powered off |
| REAR LAN (On upper side of jack) | GREEN SOLID | Network connected |
| GREEN FLASHING | Network active |
| UNLIT | No Network |
| REAR LAN (On lower side of jack) | GREEN SOLID | Network connected |
| UNLIT | No Network |
