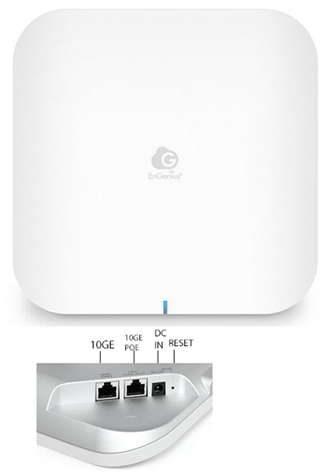

EnGenius ECW536
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS LED | Flashing Orange | Connecting to Cloud (Flashing 0.5s) |
Solid Blue | On (5s) | Flashing Blue | Firmware update Flashes blue (0.5s) Flashes white (0.5s) | Flashing Blue (Fast) | Reset to Default (Flashing 0.2s) | Blue Breathing | LAN Connected (3s) | Yellow Breathing | 2.4GHz radio ON (3s) | Green Breathing | 5GHz radio ON (3s) | Purple Breathing | 6GHz radio ON (3s) | Flashing Blue | AP locating mode (1.5s ON - 0.5s OFF) |
