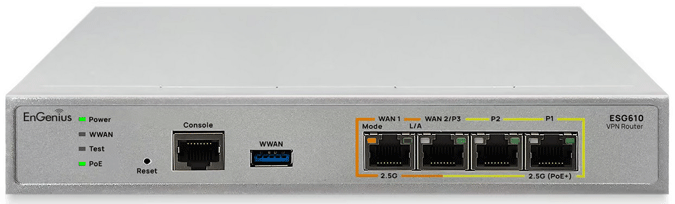

EnGenius ESG610
Normal Status Lights

Light
STATUS
Description & Suggested Action
POWERFlashing OrangePower ON
Flashing GreenConnecting to the Cloud
Solid GreenCloud connected
Flashing Green/OrangeFirmware update
Flashing GreenReset to default by HW Button (Push for over 10 sec)
Flashing GreenGateway locating
WWANFlashing OrangeReset to default by HW Button (Push for over 10 sec)
Flashing OrangeGateway locating
TESTFlashing BlueReset to default by HW Button (Push for over 10 sec)
Flashing BlueGateway locating
PoESolid GreenProviding PoE power
ETH LeftSolid Orange2.5G
Flashing Green1G
Unlit100M/10M/No Link
ETH RightSolid GreenLink
Flashing GreenTransmit data
UnlitNo Link
