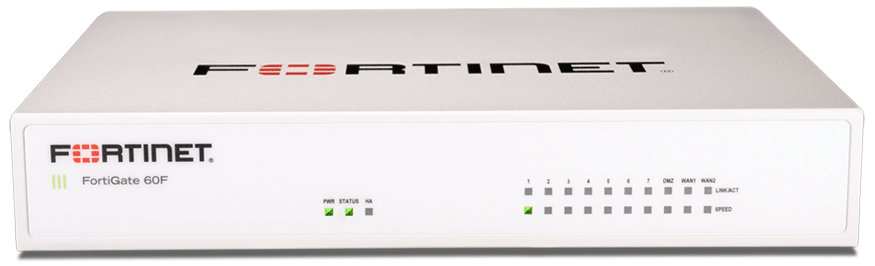

Fortinet FortiGate 60F
Normal Status Lights

Light	STATUS	Description & Suggested Action
PWR	SOLID GREEN	Power is on
	UNLIT	Power is off
STATUS	SOLID GREEN	Normal
	FLASHING GREEN	Booting up
HA	SOLID GREEN	Operating in HA cluster
	SOLID AMBER	HA failover
	UNLIT	Not in an HA cluster
PORT LINK/ACT	SOLID GREEN	Connected
	FLASHING GREEN	Transmitting data
	UNLIT	No link established
PORT SPEED	GREEN	Connected at 1Gbps
	AMBER	Connected at 100Mbps
	UNLIT	Not connected or 10Mbps
