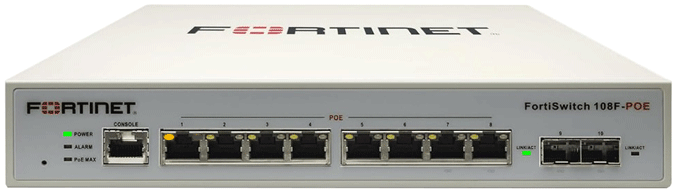

Fortinet FortiSwitch 108F-POE
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Solid Green | System power is on and operating normally |
Rapidly Flashing | Indicates bootup failure or corrupted firmware | Unlit | No power | | ALARM | Unlit | No faults or system alarms detected |
Solid Amber | A hardware fault or threshold violation has been triggered | | PoE MAX | Unlit | PoE power available |
Solid Amber | PoE output power reached MAX power | | RJ45 (RIGHT) | Solid Green | Network link at 1 Gbps |
Flashing Green | Transmitting/receiving data a 1 Gbps | Solid Amber | Network link at 10/100 Mbps | Flashing Amber | Transmitting/receiving data a 10/100 Mbps | Unlit | No link detected | | POE (LEFT) | Solid Amber | Port is delivering Power over Ethernet |
Flashing Amber/Green | PoE fault. Can mean device is drawing more power than the port allows, the power limit threshold has been exceeded or an incompatible/non-IEEE standard device is connected | Unlit | Not delivering PoE | | SFP (9-10) | Solid Green | Connected |
Flashing Green | Transmitting/receiving data | Unlit | No link detected |
