Calix GigaHub 812G ONT

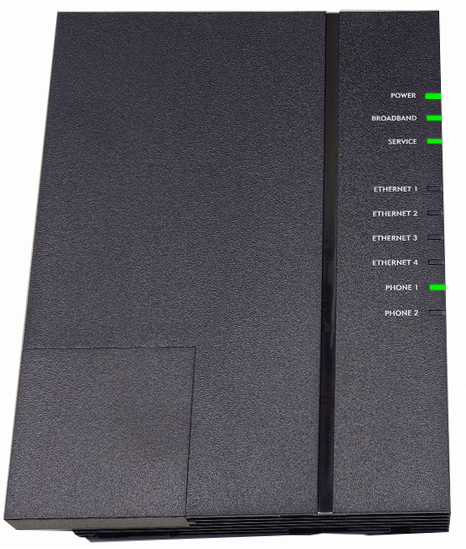

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	Solid Green	Power being supplied to the ONT
	Unlit	No Power
BROADBAND	Solid Green	ONT connected correctly to the Network
	Unlit	No Network connectivity
SERVICE	Solid Green	Connected to Network but not sending/receiving data
	Flashing Green	Sending/receiving data
	Unlit	Not connected
ETHERNET	Solid Green	Physical connection between the ONT and ETHERNET Port on PC or Router
	Flashing Green	Data is being transferred
	Unlit	No connection
PHONE	Solid Green	Idle line
	Flashing Green	Line in use
	Unlit	Not connected

Light	STATUS	Description & Suggested Action

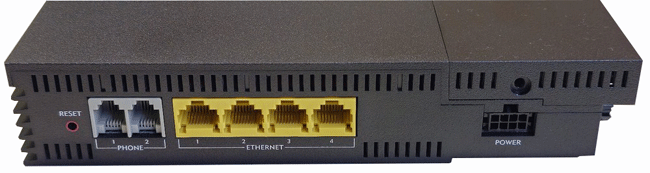

PHONE 1-2
ETHERNET 1-4
RESET
POWER
