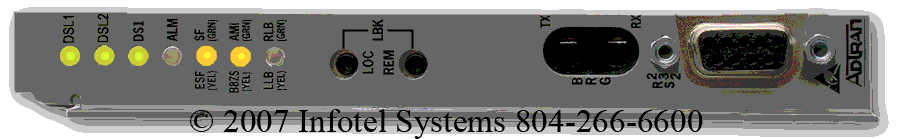

ADTRAN H4TU-R Card
Normal Status Lights

Light	STATUS	Description & Suggested Action
DSL1/DSL2	Unlit	No sync // Call your Carrier.
	Red	Poor signal quality // Call your Carrier.
	Yellow	Marginal signal quality // Call your Carrier.
	RED - Flashing	Error detected on HTU-C or HTU-R // Call your Carrier.
DS1	Unlit	Premise equipment T1 signal not present or wrong format // Call your Vendor.
	RED - Flashing	Premise equipment T1 signal errors // Call your Vendor.
ALM	Red	Local alarm at HTU-R Card detected.
	Yellow	Remote alarm at HTU-C Card detected.
ESF/SF	Unlit	Unframed mode // Call your Carrier.
	Yellow	ESF Framing
	Green	SF Framing
B8ZS/AMI	Yellow	B8ZS
	Green	AMI
LBK	Yellow	Active local loop back at the HTU-R.
