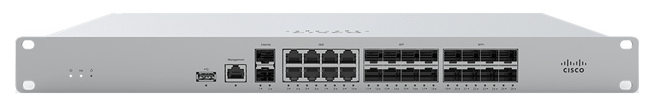

Cisco MX250
Normal Status Lights
If you need to support for any Cisco device please see: Richweb.
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Solid Orange | Power is applied |
Rainbow | Unit is attempting to contact the Cloud | Flashing White | Operation is in progress | Solid White | Fully operational | | USB | Unlit | During boot or USB link |
Solid Orange | Initial link | Flashing Orange | Internet connectivity not complete | Solid Green | USB connection detected | | HA STATUS | Unlit | No HA available |
Solid Orange | Initial link | Flashing Orange | High Availability not complete | Solid Green | HA available |
