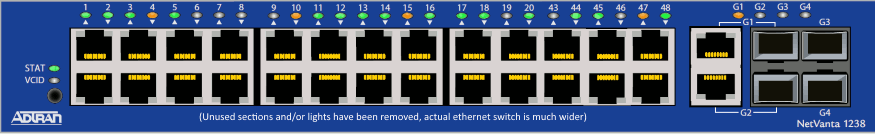

ADTRAN NetVanta 1238P
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| Status | Off | Unit is not receiving power. |
Green (Flashing) | On power up, the STAT LED flashes rapidly for five | | seconds, during which time the user may escape to boot | | mode from the CONSOLE port. | Green (Solid) | Power is on, and self-test has passed. | Red | Power is on, but the self-test failed or the application code | | could not be booted. | | Link/Act | Off | Link status/activity is not being displayed. |
Green (Solid) | Link status/activity status is being displayed. | | PoE | Off | PoE status is not being displayed. |
Green (Solid) | PoE status is being displayed. | | VCID | Off | VCID is not selected. |
Green (Solid) | VCID is selected. The port LED that corresponds to the unit's VCID will display green. | | Port LED in Link/Activity mode 1 - 48 | Off | The port is not connected. |
Green (Solid) | The link is up and the port is enabled. | Amber (Flashing) | The link is up and activity (transmit or receive) has occurred on the port | | Port LED in PoE mode 1 - 48 | Off | Powered device is not connected. |
Green (Solid) | Powered device is connected. |
