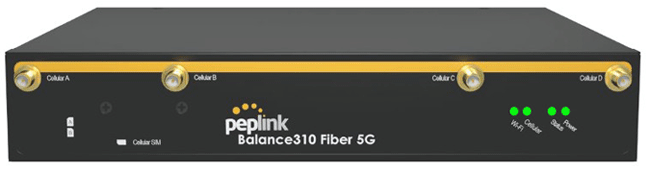

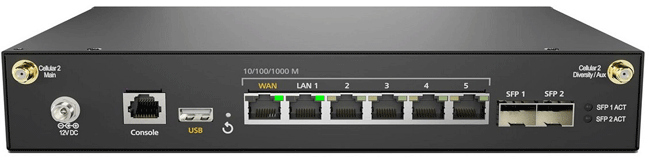

PepWave Peplink Balance 310 Fiber 5G
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	Unlit	No Power
	Solid Green	Power is ON
STATUS	Unlit	Firmware is upgrading
	Solid Red	Booting up or busy
	Flashing Red	Boot up error
	Solid Green	Ready
CELLULAR	Unlit	Disabled
	Flashing Green (Slow)	Connecting to wireless network
	Solid Green	Connected to wireless network
WI-FI	Unlit	Disabled
	Solid Green	Enabled

Light	STATUS	Description & Suggested Action
WAN (Right LED)	Solid Green	1000 Mbps
	Solid Orange	100 Mbps
	Unlit	10 Mbps or port is not connected
WAN (Left LED)	Flashing Orange	Data is transferring
	Unlit	Port is not connected
LAN (Right LED)	Solid Green	1000 Mbps
	Solid Orange	100 Mbps
	Unlit	10 Mbps or port is not connected
LAN (Left LED)	Flashing Orange	Data is transferring
	Unlit	Port is not connected
