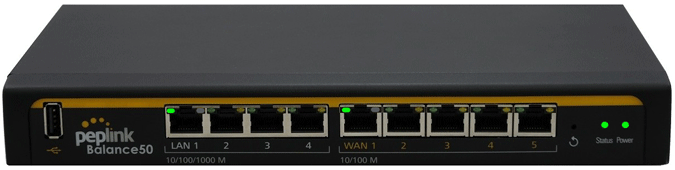

PepWave Peplink Balance 50
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Green Solid | Power is on and Status is ready |
Unlit | Upgrading firmware | Red Solid | Booting up or busy | Red Flashing | Boot up error | | WAN (Ports 1 - 5) | Green Solid | On - 10/100/1000 Mbps |
Orange Flashing | Data is transferring | Orange Unlit | No data is being transferred or port is not connected | | LAN (Ports 1 - 4) | Green Solid | On - 10/100/1000 Mbps |
Orange Flashing | Data is transferring | Orange Unlit | No data is being transferred or port is not connected |
