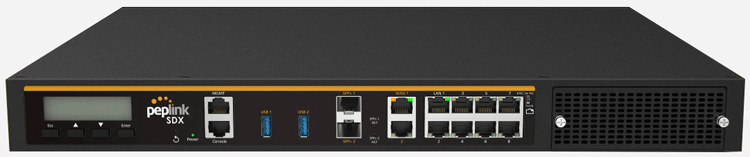

PepWave Peplink SDX
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	Unlit	No Power
	Solid Green	Power is ON
WAN (Right LED)	Solid Green	1000 Mbps
	Unlit	10 Mbps / 100 Mbps or the port is not connected
WAN (Left LED)	Solid Orange	Port is connected without traffic
	Flashing Orange	Data is transferring
	Unlit	Port is not connected
LAN (Right LED)	Solid Green	POE enabled
	Unlit	POE is disabled
LAN (Left LED)	Solid Orange	Port is connected without traffic
	Flashing Orange	Data is transferring
	Unlit	Port is not connected
