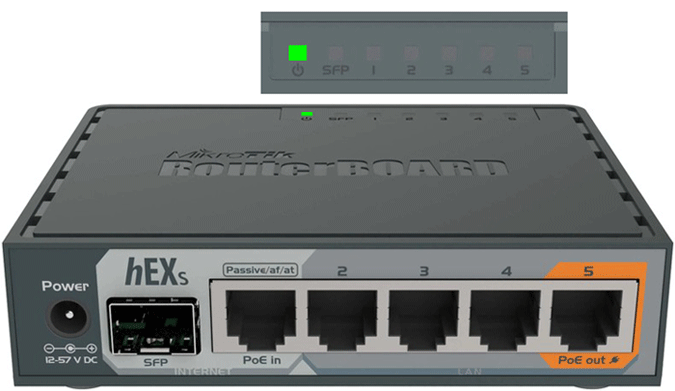

MikroTik RouterBoard hEX S
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | SOLID GREEN | Powered On |
UNLIT | No Power | | SFP | SOLID OR FLASHING | Acts as a Link indicator and also used during RouterOS system resets |
| ETHERNET 1-4 | SOLID GREEN | A valid 1000 Mbps (Gigabit) link is established |
SOLID ORANGE | a valid 10/100 Mbps link is established | FLASHING GREEN OR ORANGE | Data is being transmitted or received | UNLIT | No cable is connected, the connected device is powerd off or the link has failed | | ETHERNET 5 | FLASHING RED/GREEN | When PoE output is active, the LED may display an alternating red/green sequence during standard activity |
