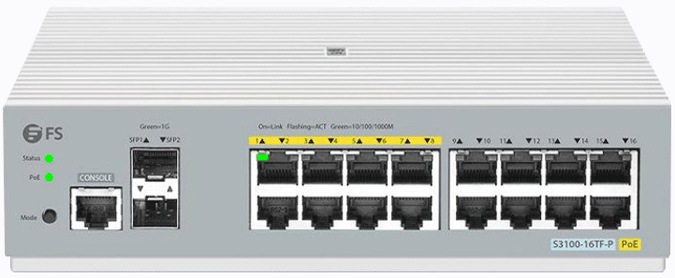

FiberStore S3100-16TF-P
Normal Status Lights

Light	STATUS	Description & Suggested Action
STATUS	Unlit	Not powered on
	Flashing Green	Being initialized. Continuous flashing indicates a fault
	Solid Green	Normal operation
	Solid Yellow	Temperature alarm
	Solid Red	Temperature exceeds the threshold and the system restarts
PoE	Solid Green	Shows switching status
	Solid Yellow	Shows PoE status
RJ45 (1-16)	Unlit	Port is not linked
	Solid Green	Port is linked up at 10M/100M/1000M
	Flashing Green	Sending/receiving data
PoE (1-8)	Unlit	PoE disabled
	Solid Green	PoE enabled
	Flashing Green	Overloaded
SFP	Unlit	Port is not linked
	Solid Green	Port is linked up at 1G
	Flashing Green	Sending/receiving data
	Solid Red	An error occurs when the transceiver sends signals
	Solid Yellow	An error occurs when the transceiver receives signals
