ADTRAN TA 908e

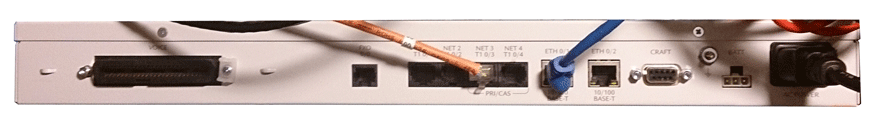

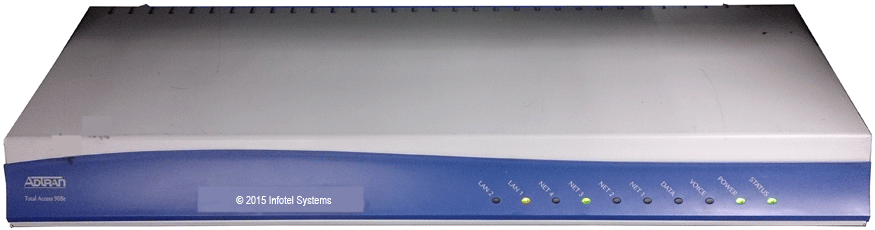

Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| STATUS | Unlit | Bootstrap Mode - The boot code can not be booted. During bootstrap mode VOICE, DATA, NET 1 - 4 LED's will be red. |
Green (Flashing) | Unit is powering up. On power-up the STATUS LED flashes rapidly for 5 seconds, during which time the user may escape to bootstrap mode from the CRAFT port. | Green (Solid) | Power is on and the unit is functioning normally. | | POWER | Unlit | No power. |
Green (Solid) | AC power is operational. | Amber | AC power has failed. Battery backup is active. | | VOICE | Unlit | All ports are inactive. |
Green (Solid) | At least one port is off hook. | Green (Flashing) | At least one port is ringing. | Amber | At least one port is in test. | Red | Fault condition. | | DATA | Unlit | Port is administratively shut down. |
Green | Layer 2 is up on a NET interface. | Red | Layer 2 is down on a NET interface. | | NET 1 - 4 | Unlit | Port is administratively shut down. |
Green | Link is up and in normal operation. | Amber | Port is in test. | Red | An alarm condition is present. | | LAN 1 - 2 | Unlit | Link is down or port is administratively shut down. |
Green (Solid) | 10BaseT link is up. | Green (Flashing) | 10BaseT link is up and traffic is flowing. | Note: Status lights shown are configured for SIP via LAN 1 (ETH 0/1) to PRI (NET 3). |
Light
|
STATUS
|
Description & Suggested Action
|
| ETH 0/1 - 0/2 | Amber (Solid) | 100BaseT link is up. |
Amber (Flashing) | 100BaseT link is up and traffic is flowing. |
