ZyXEL USG FLEX 50H

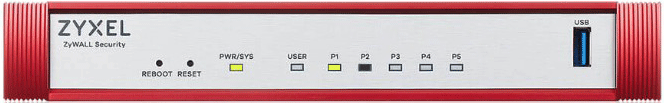

Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| PWR/SYS | Unlit | Device is not ready or has failed |
Solid Green | Ready and running | Flashing Green | Booting up of Firmware upgrade | Solid Red | Device has an error or has failed | Flashing Red | Returning to factory defaults | | USER | Solid Green | There are accounts with User Type set as Admin logged into the device |
Flashing Green | New Firmware available or license has expired | Solid Amber | There are IP addresses locked out of the device | Unlit | USER LED is not enabled in System > Settings | | P1-P5 | Solid Amber | Port has a successful 10/100 Mbps link |
Flashing Amber | Sending or receiving packets at 10/100 Mbps | Solid Green | Port has a successful 1 Gbps link | Flashing Green | Sending or receiving packets at 1 Gbps | Unlit | There is no connection on this Port |
Light
|
STATUS
|
Description & Suggested Action
|

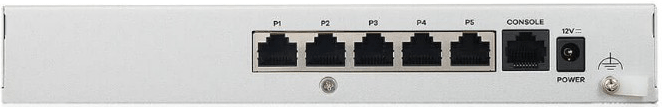

| PORT | LED's | See main LED light on front panel for device status |
